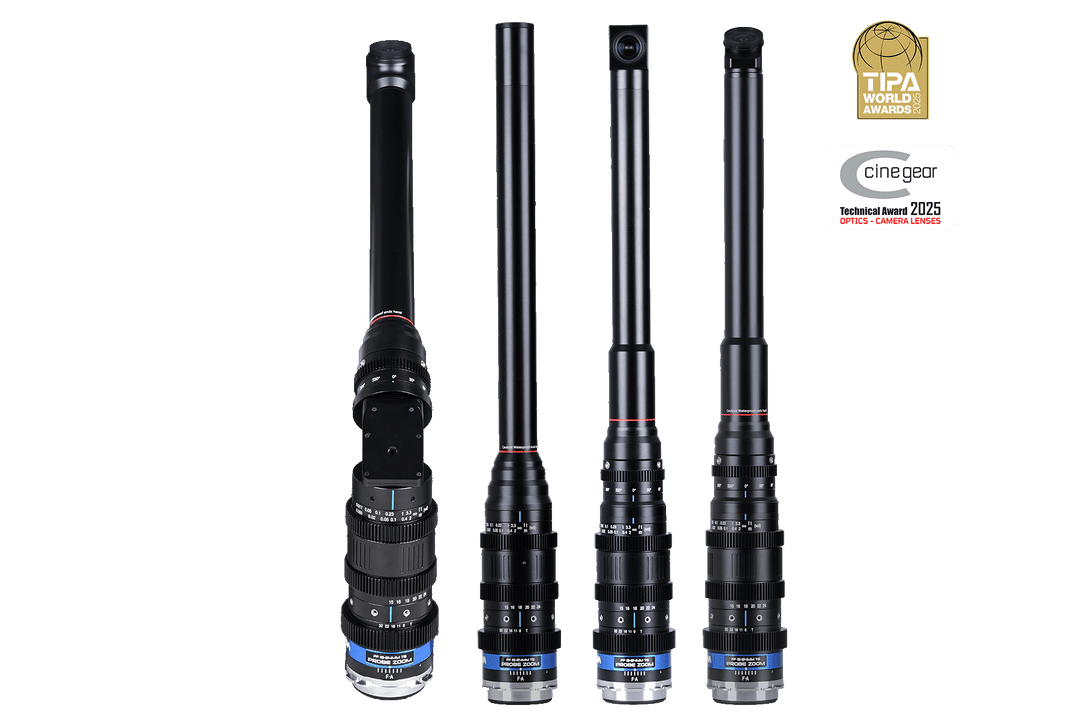

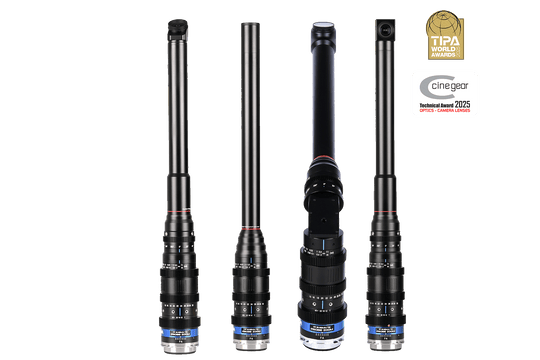

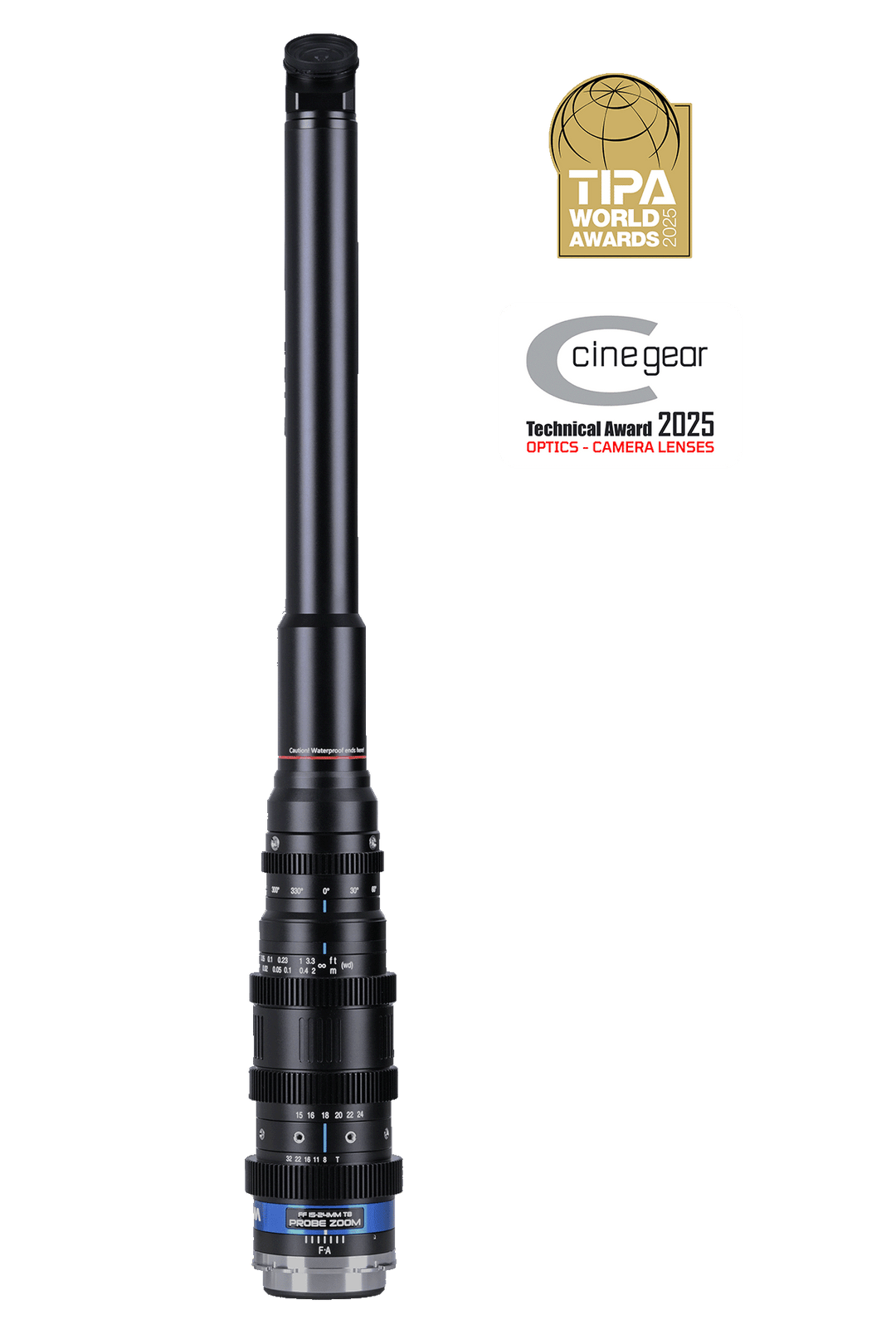

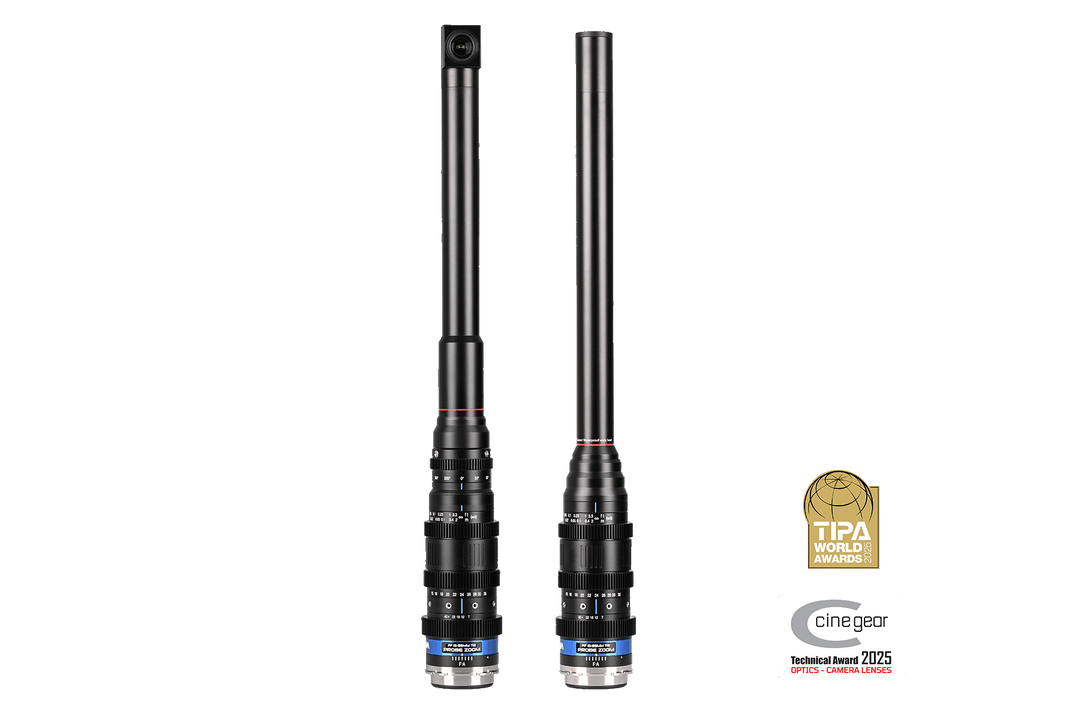

Laowa Probe Zoom FF Macro Cine Series

Unveiling the widest probe zoom in the market: the Laowa Probe Zoom Macro Cine Series for Full Frame.
A lens system featuring an ultra-wide 15mm perspective with up to 2.3X zoom and magnification while keeping an impressive 5mm closest working distance. There are 2 parfocal zoom modules and 4 different waterproof front barrels to choose from, taking tabletop and commercial productions to new levels.

Key Specifications

• Lens Mount(s): Arri PL

• Sensor Coverage: Full Frame

• Image Circle Ø: 43.2mm / 1.7"

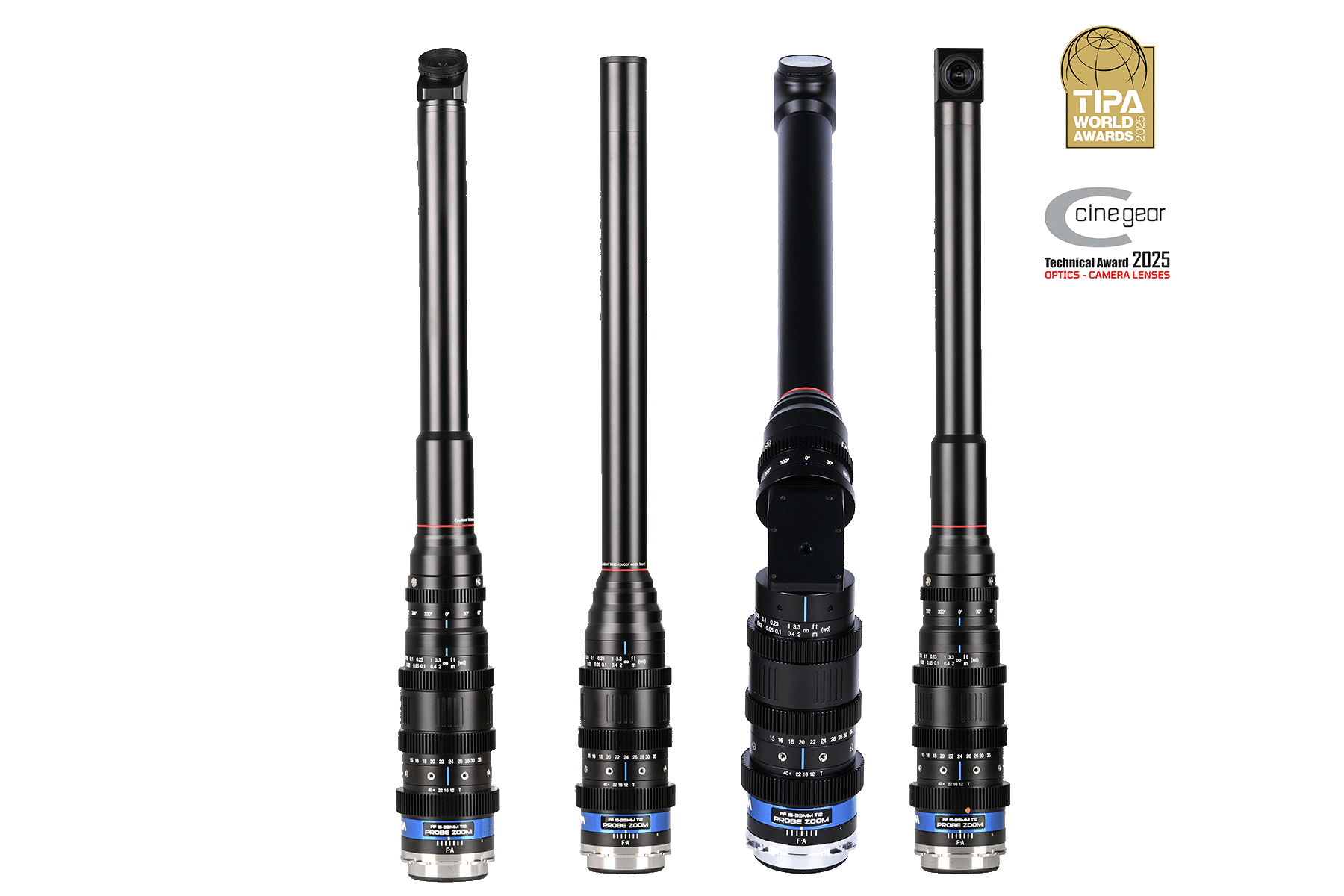

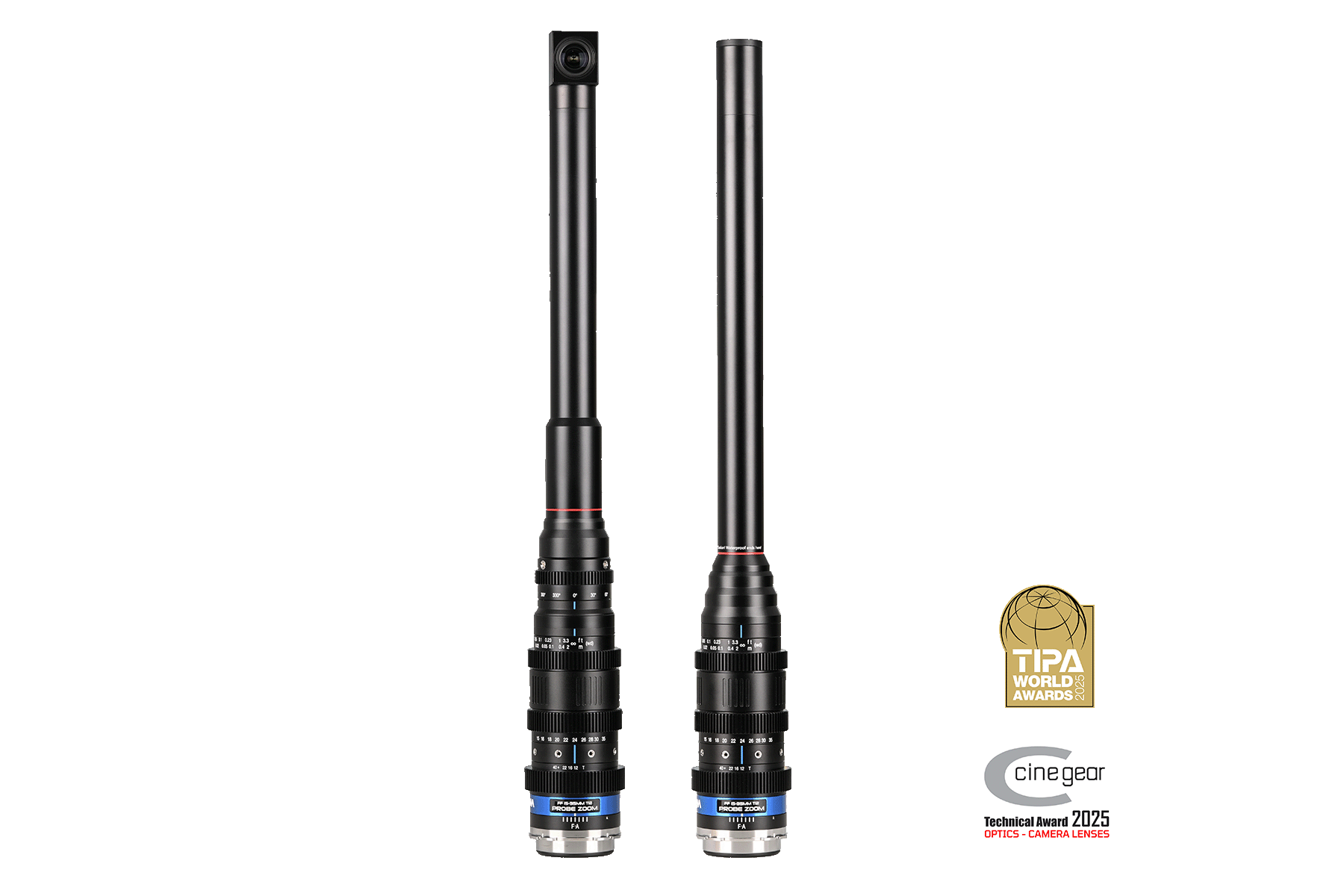

• Available Zoom Modules

  • 15-24mm T8

  •  15-35mm T12

• Available Front Barrels

  • Direct View (0°)

  • Periscope View

  • Tilt View (35°)

  • 90° View

• Maximum Magnification

  • 15-24mm T8: Up to 1.6X

  • 15-35mm T12: Up to 2.3X

• Minimum Working Distance: 5mm / 0.2"

• Geared Zoom, Focus, Aperture & 360º Rotation: 0.8mm pitch

• Dual Imperial & Metric Focus Scale Markings

Note: The Full Set is modular and user interchangeable, while in the single options the zoom module and front barrels are fixed to each other and NOT user interchangeable.
Note: Optional interchangeable mount bayonets available via special import request: EF, RF, E, Z & L-mount

There are 2 parfocal zoom modules available which can be combined with 4 different front barrels to give you a total of 8 lens configurations.

When purchased as a full set, both of the zoom modules and each of the front lens barrels have been factory calibrated and matched for optical performance. They are fully modular and user interchangeable.
In contrast, the single lens options have been manufactured as a complete unit and are not modular. This allows us to maintain the highest level of sharpness throughout the zoom range of each unit we ship.

Two Zoom modules:
• 15-24mm T8 (☼ For easier lighting setups)
    - 1.6X Zoom Range
    - 1 to 1.6X Maximum Magnification
• 15-35mm T12 (↔ For an extended focal range)
    - 2.3X Zoom Range
    - 1 to 2.3X Maximum Magnification

4 front lens barrels:
• Direct View (0º) - The original straight angle.
• Tilt View (35º) - High or low angle without tilting the camera.
• 90º View - Shoot unique angles like side shots or direct up/down without tilting the camera.
• Periscope View - An extended periscopic view parallel to the camera, rendering subjects at different elevations as you look through the viewfinder.

The ultra-wide perspective of these 15mm zooms lends itself well to add environmental context to a frame, while the close working distance of 5mm and up to 2.3X magnification allows for extreme levels of details to be revealed. Immersion is expanded with the longest, waterproof front barrels in its class as well as geared motion control.

Both zoom modules have been equipped with geared focus, zoom and iris control, while the front barrels feature 360º geared rotation for motion control. (Geared rotation is excluded on the Direct View barrel, as it would have no effect on the projected image)

Notable features include

• Ultra-Wide 15mm perspective with up to 2.3X zoom

• Two unique zoom modules for enhanced range or brightness

• Four distinct view options for maximum flexibility

• High magnification and Parfocal performance

• Unrivalled sharpness & superior image quality

• Waterproof, tubular front barrels for immersive creativity

• Professional-grade build quality and mechanics

• Geared zoom, focus, aperture and 360º rotation control

The Laowa Probe Zoom FF Macro lens showcases true technical development that unlocks new creative solutions for any filmmaker seeking unique and immersive perspectives. Combining long, waterproof probe lens barrels, with the versatility of a zoom; you can enjoy new freedom to capture your vision.

Product Options

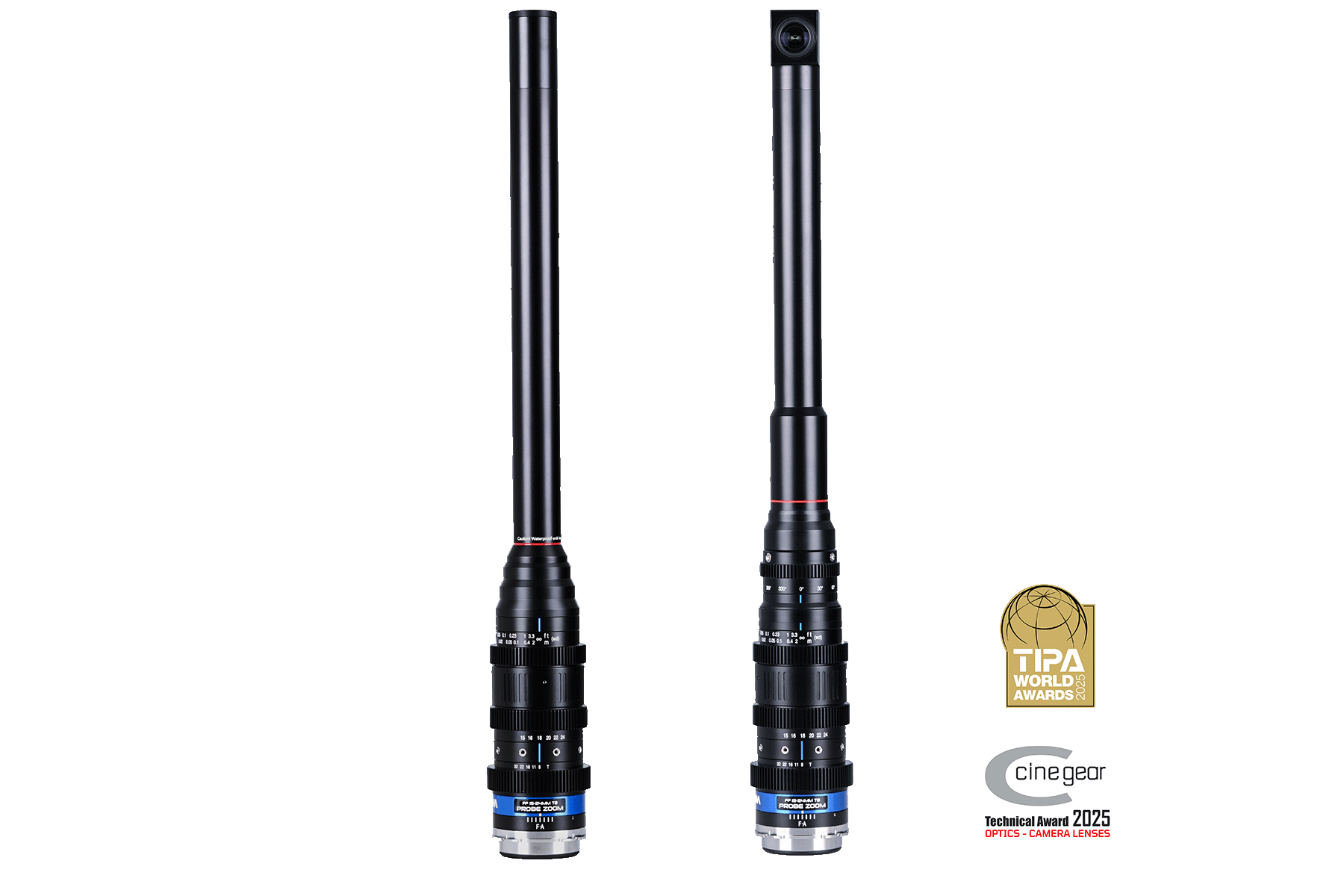

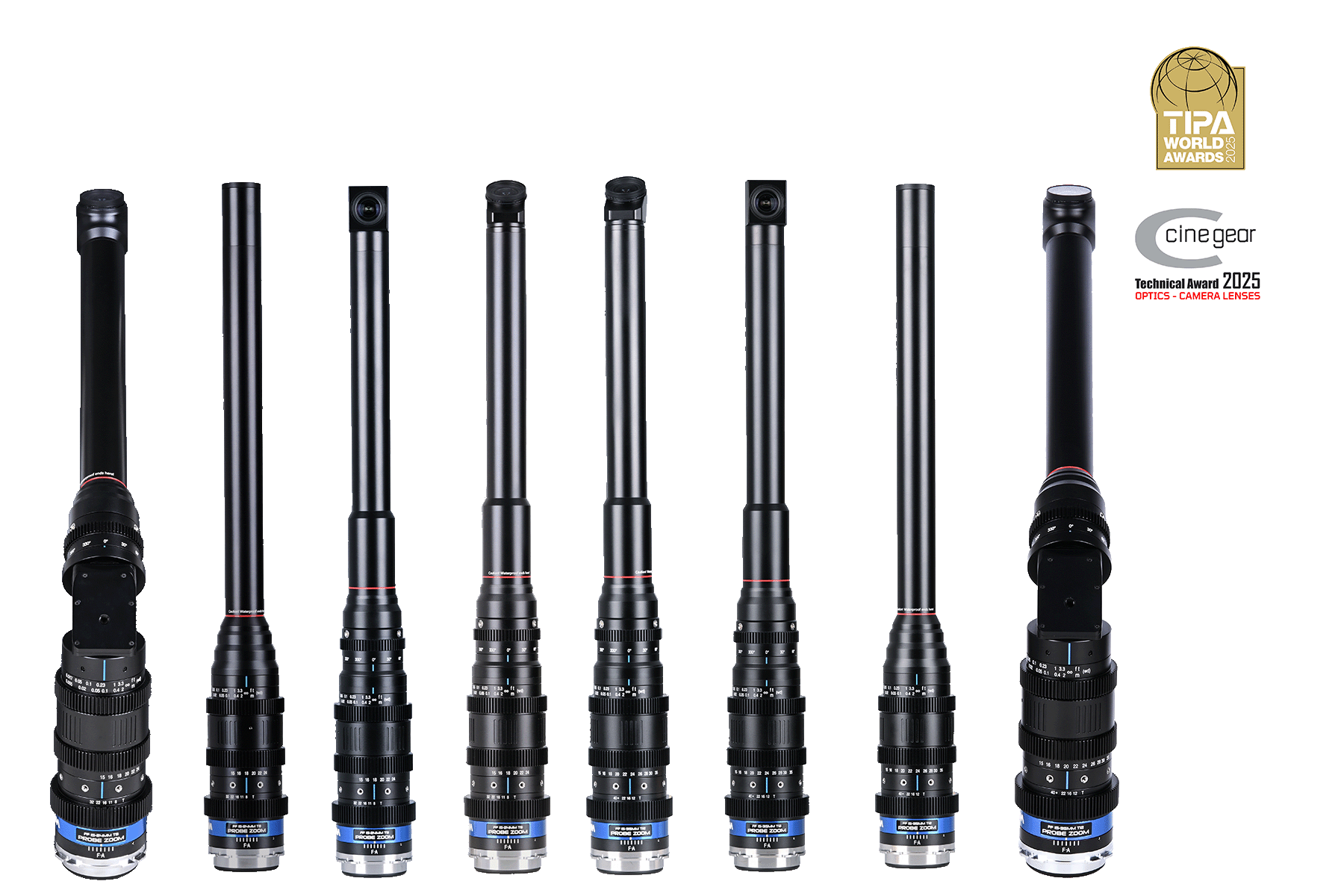

8 Single Lens Combinations

Choose to combine either the 15-24mm T8 OR 15-35mm T12 with any of the 4 Front Barrels
(Direct View / 35º View / 90º View / Periscope)

Single lens variants are NOT modular as they are shipped as a sealed unit

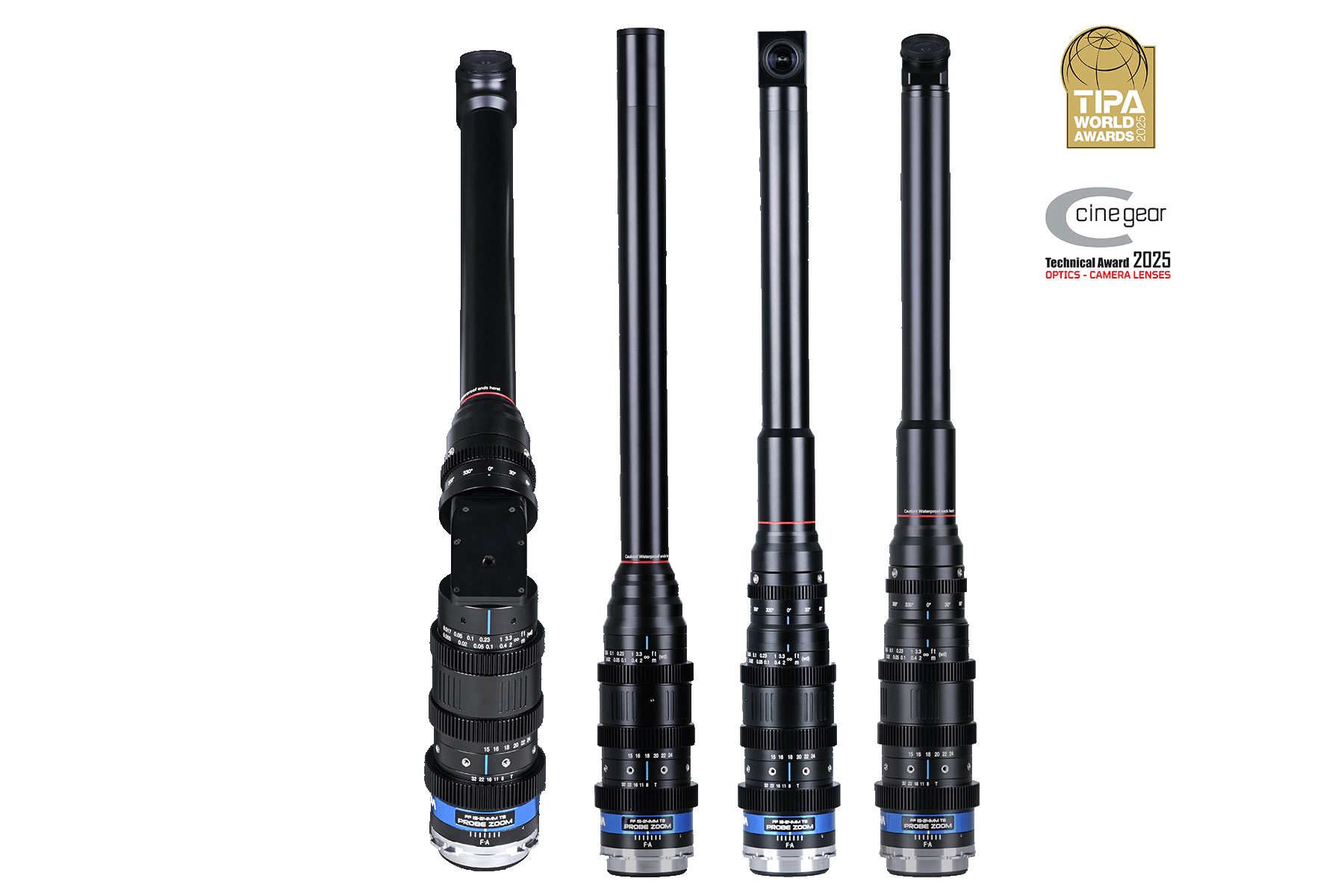

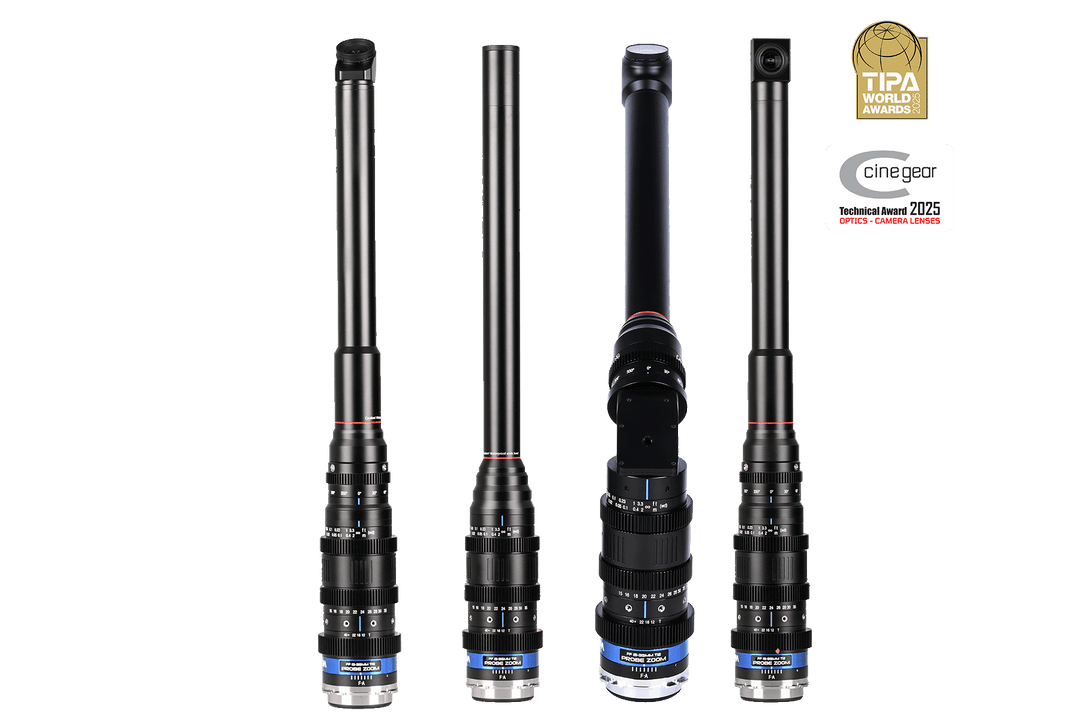

Full Set

The full set is modular and user interchangeable. All modules have been factory calibrated with all front barrels to ensure optical performance.

The kit includes both the 15-24mm T8 AND 15-35mm T12 Zoom modules, PLUS all 4 front lens barrels: Direct View, 35º View, 90º View & Periscope.

4 Practical Perspectives

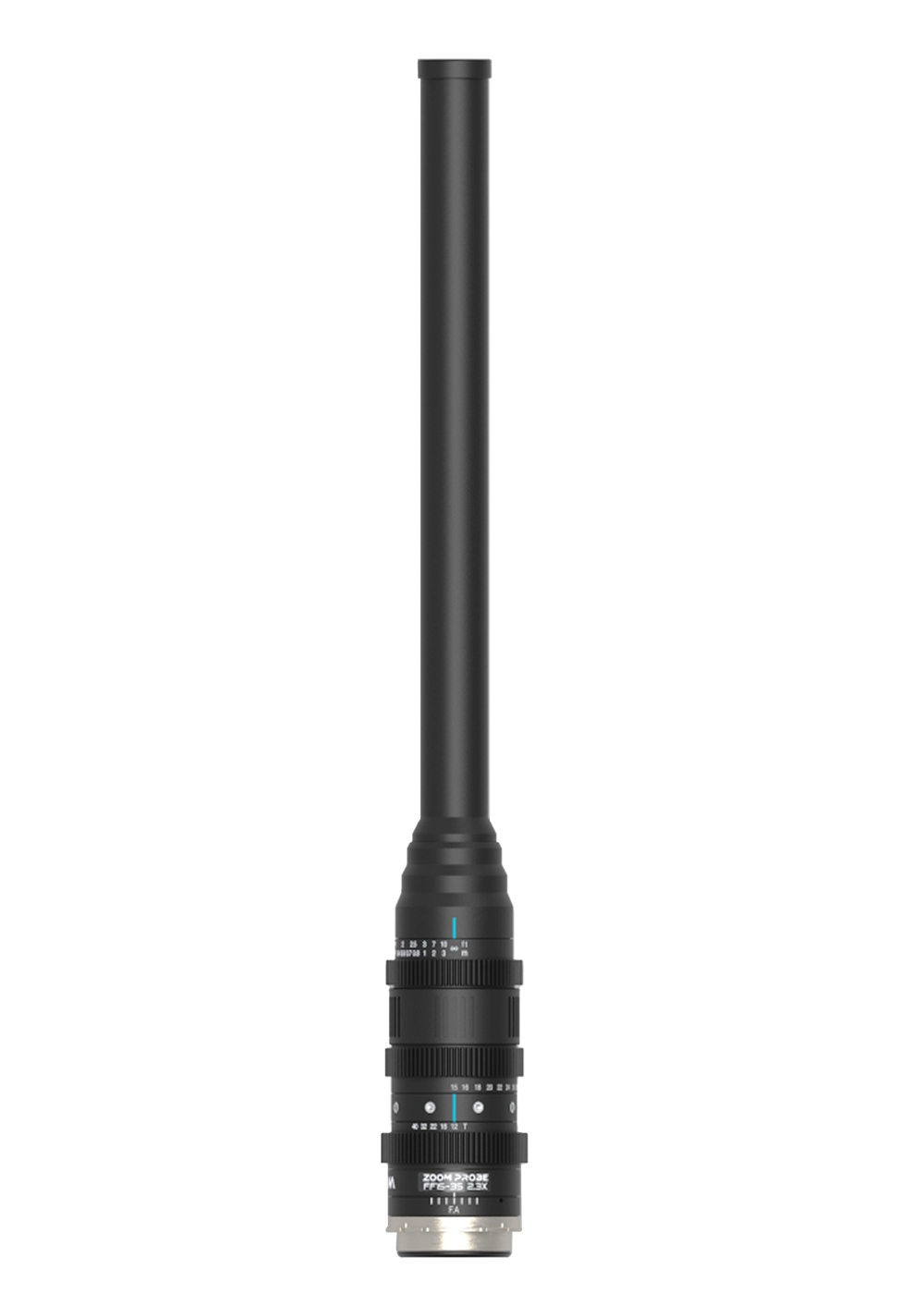

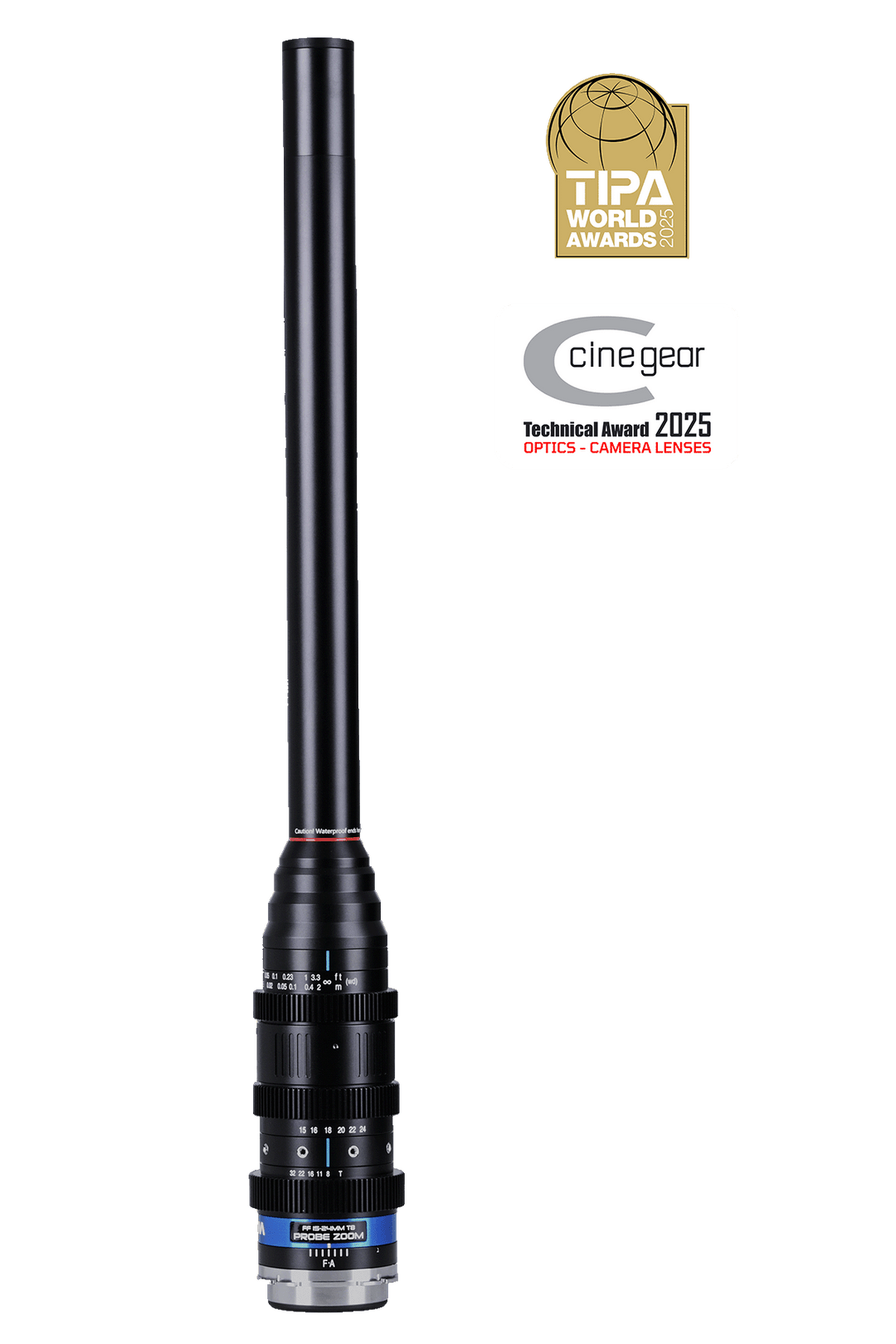

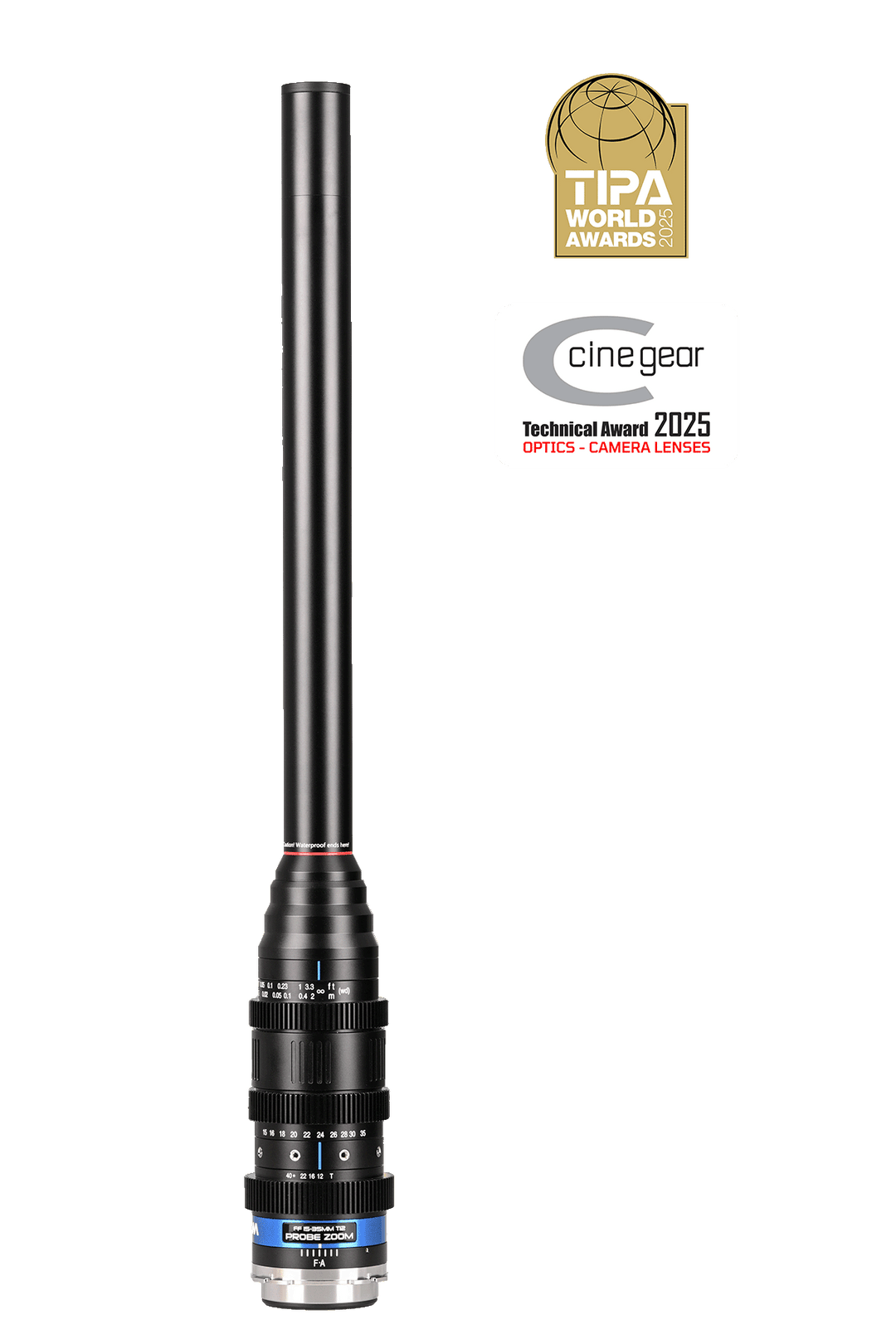

0° Direct View

The original straight angle perspective for traditional probe shots.

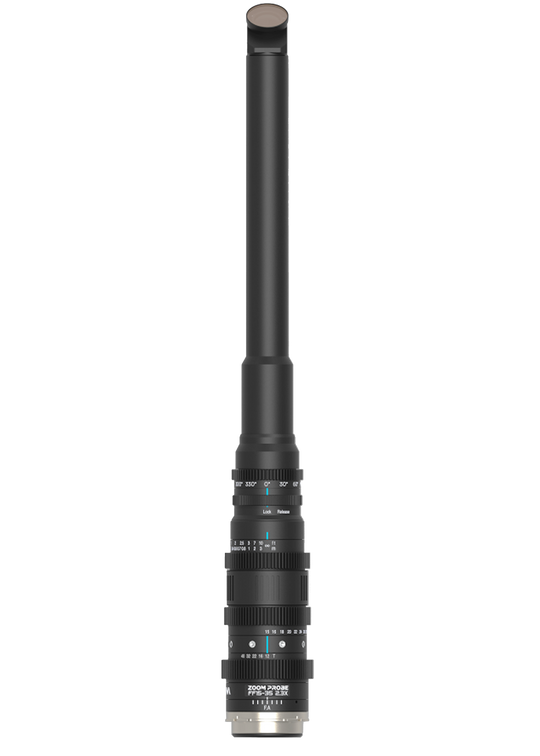

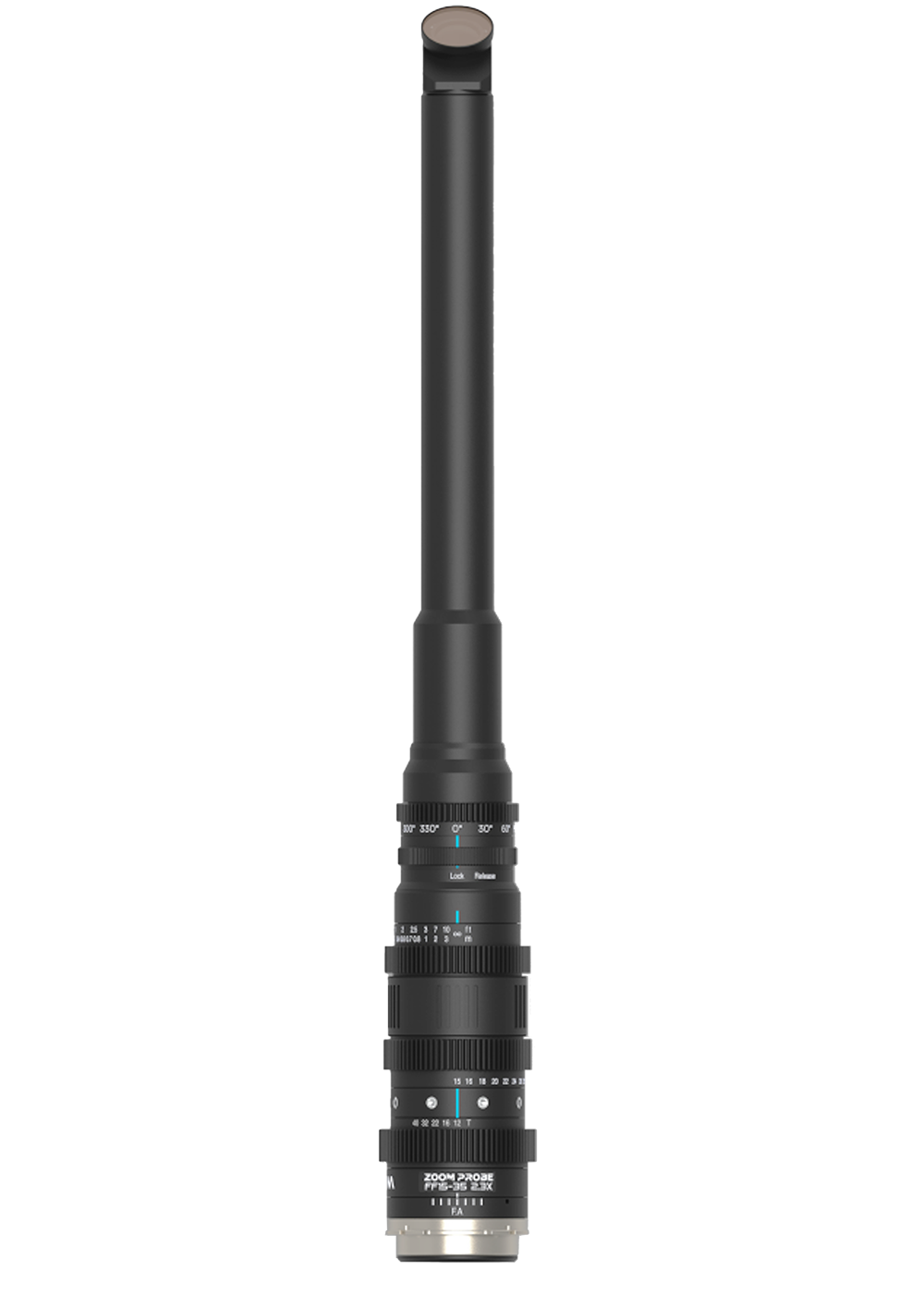

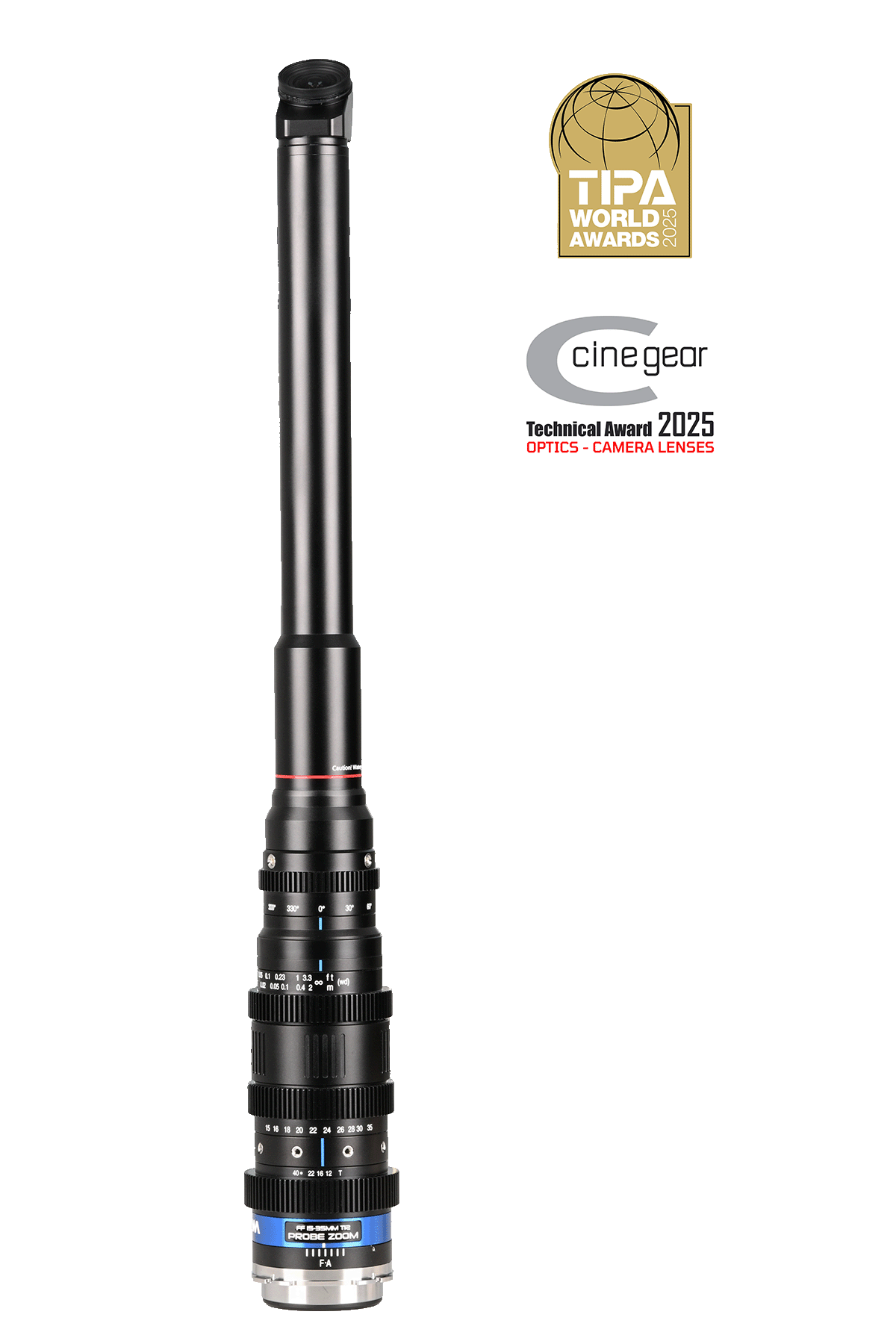

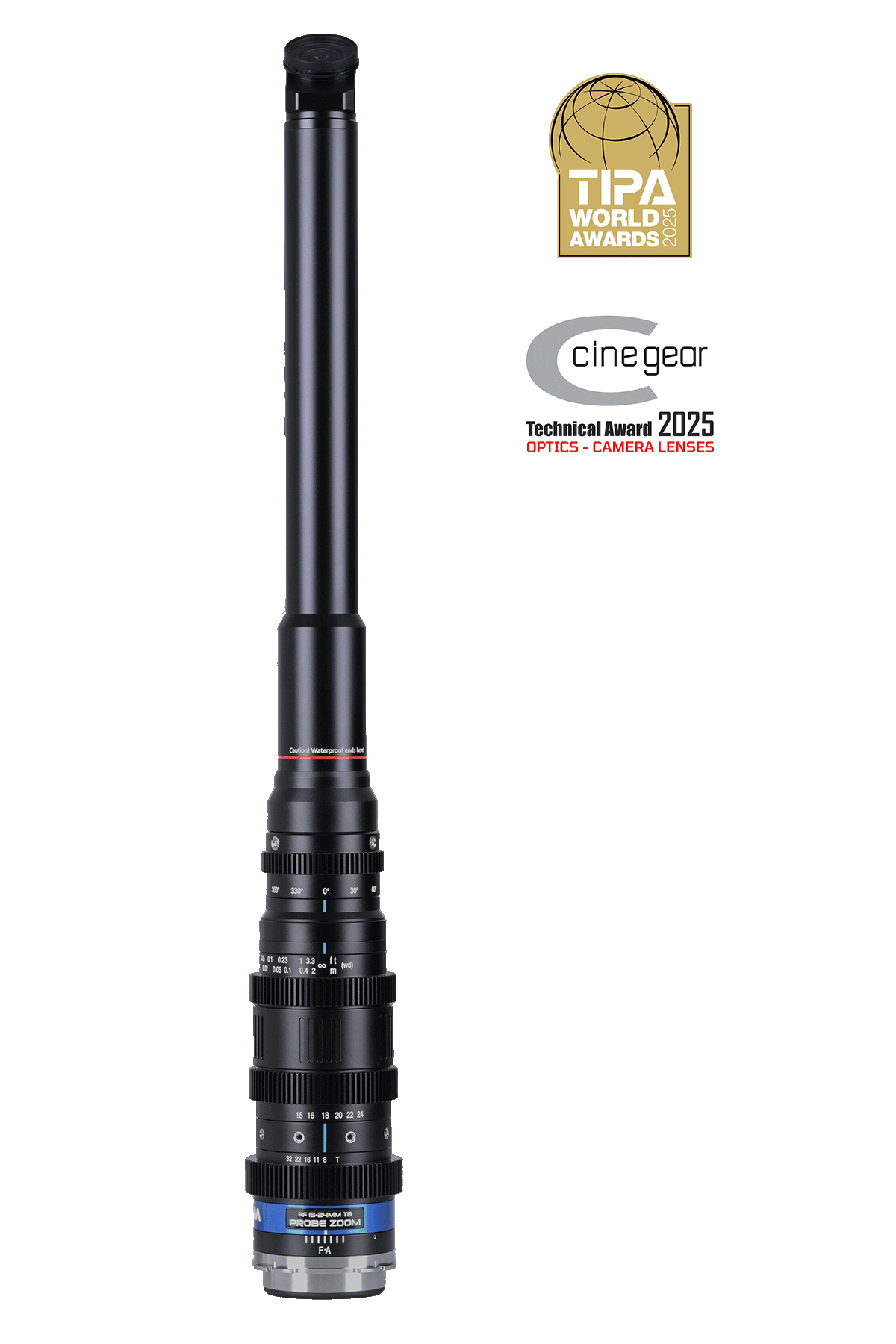

35° Tilt View

High or low angle shots without tilting the camera for cinematic perspectives.

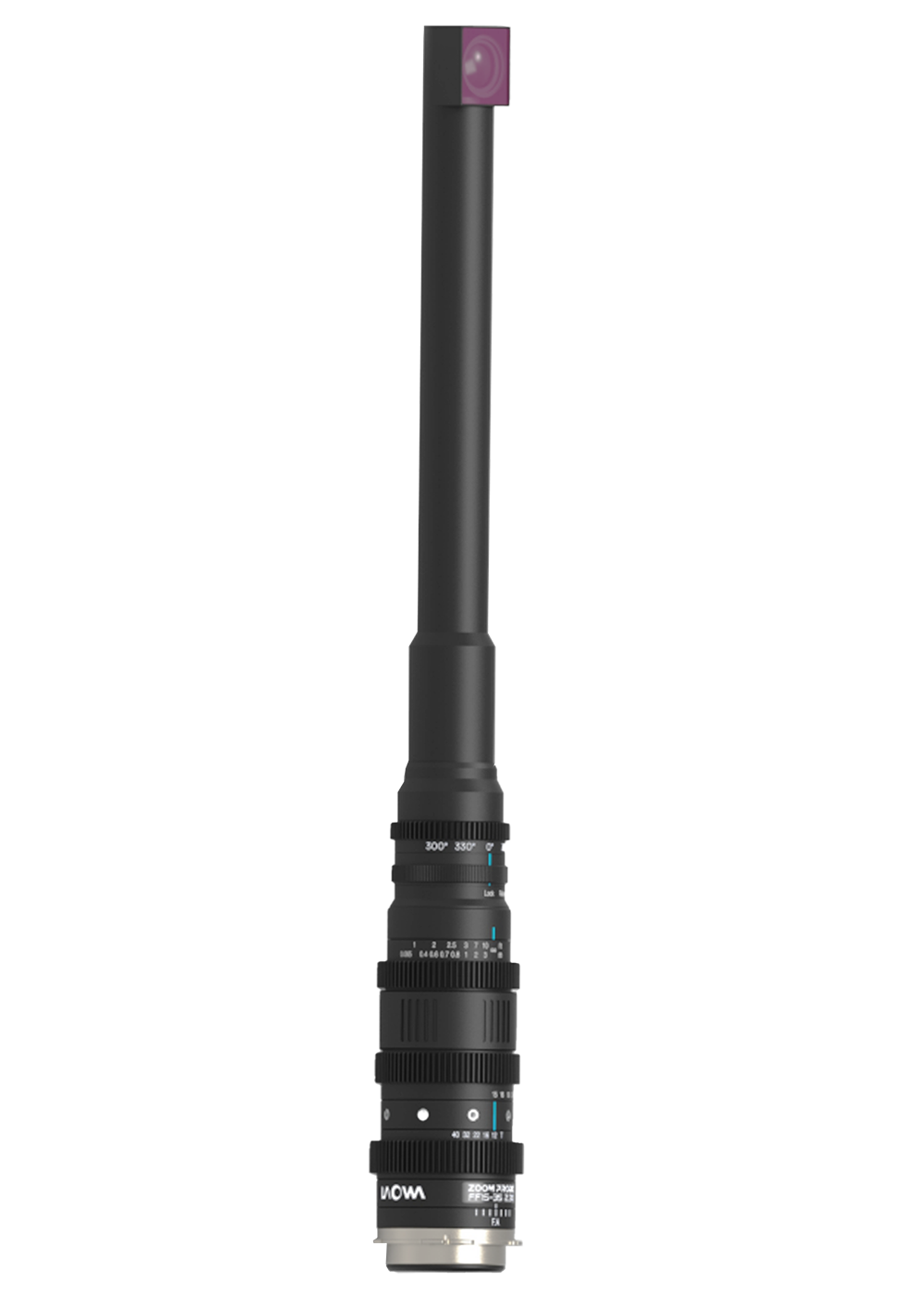

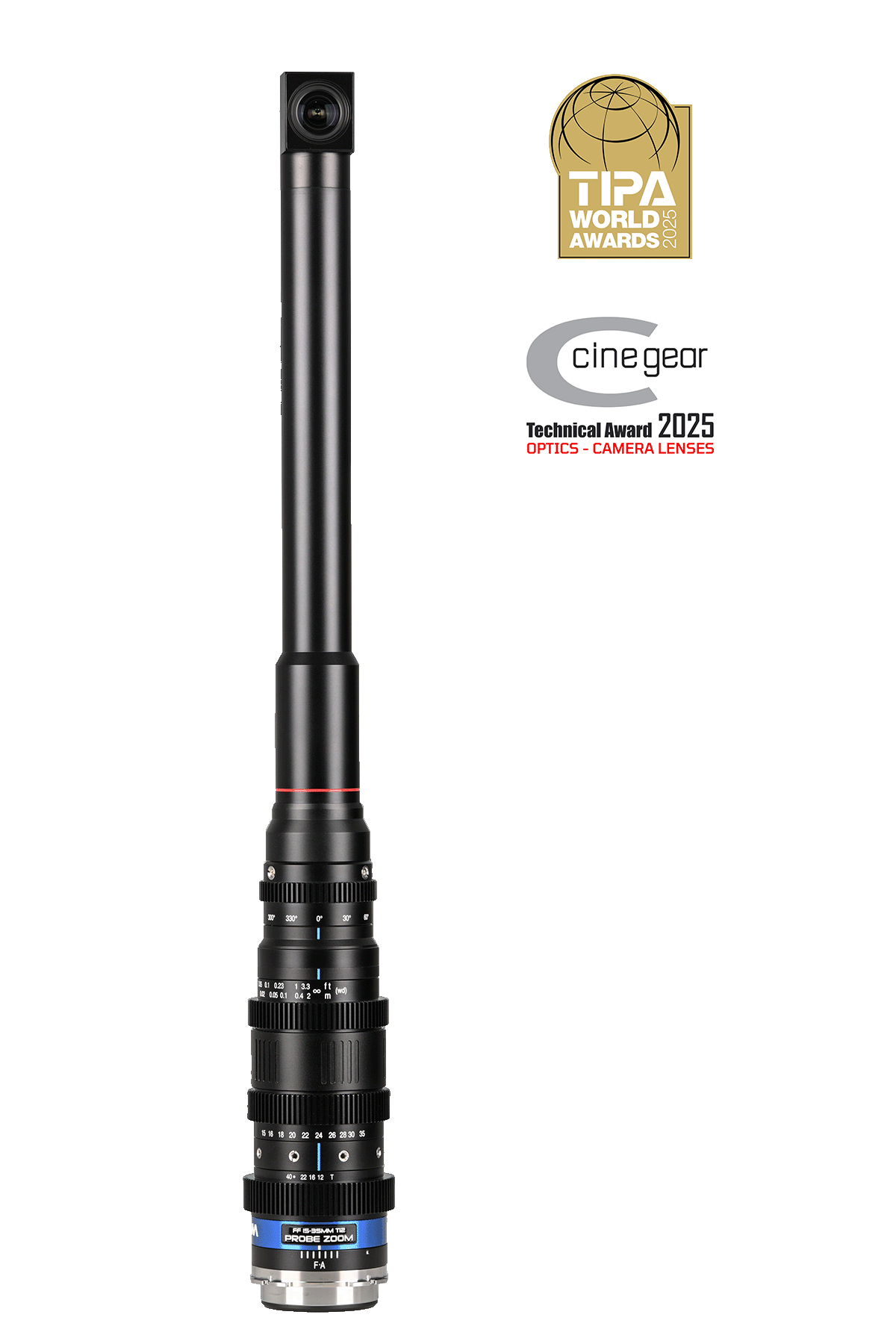

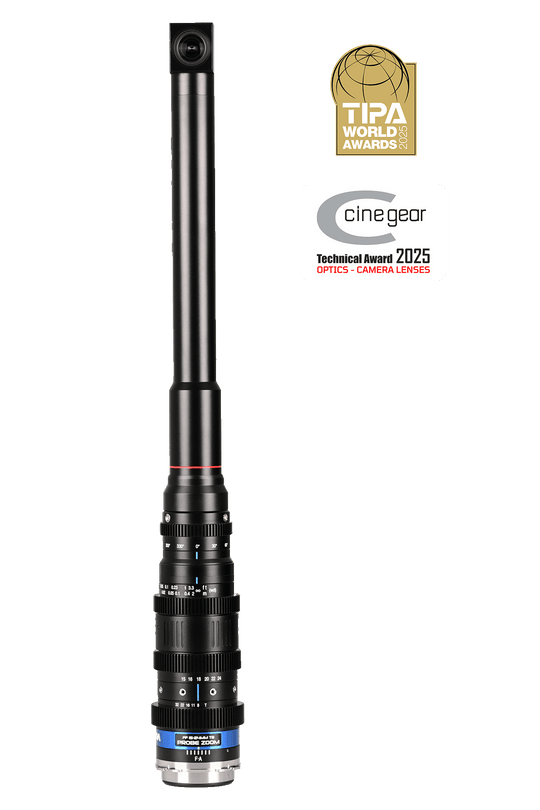

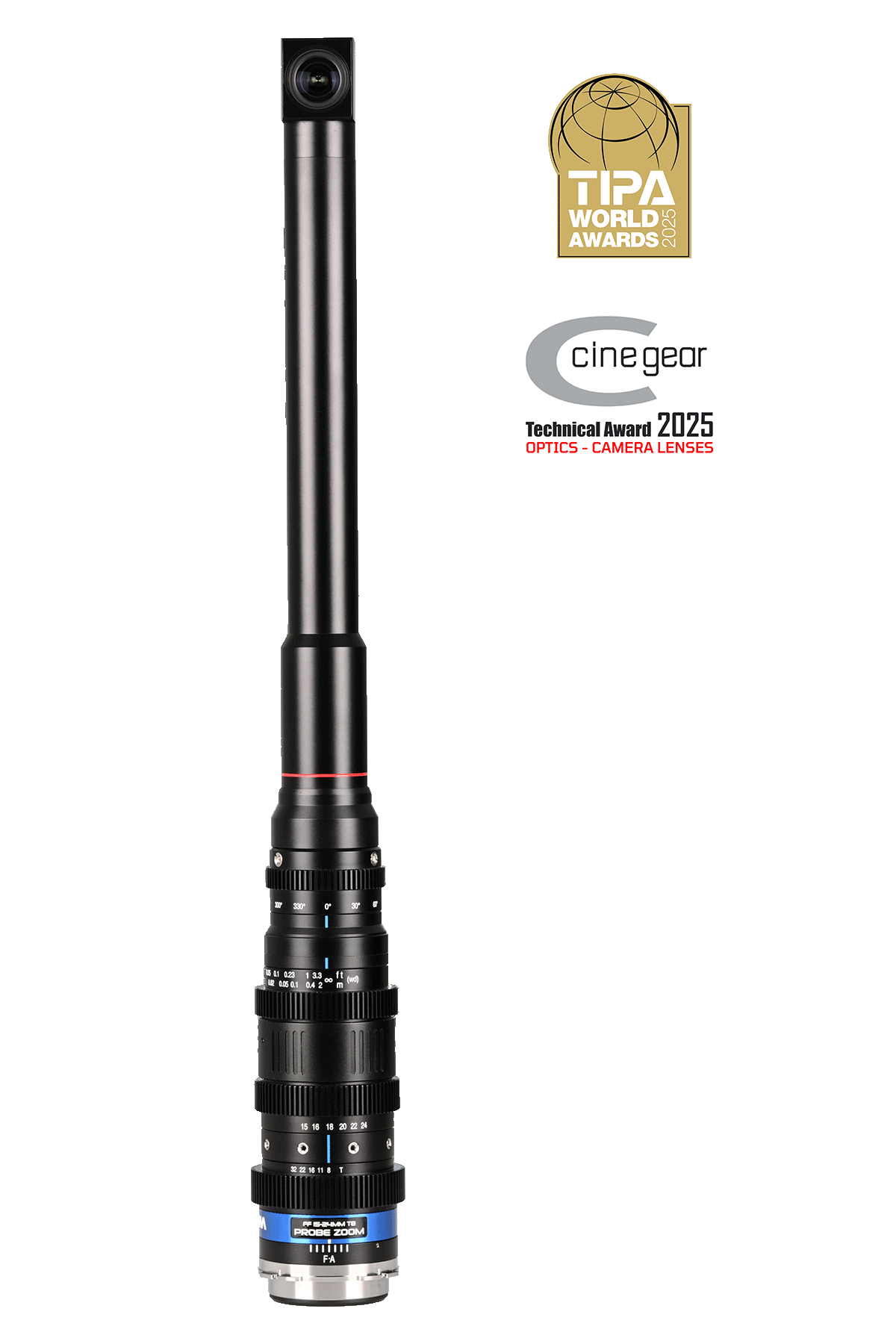

90° View

Unique angles like side shots or direct up/down without tilting the camera.

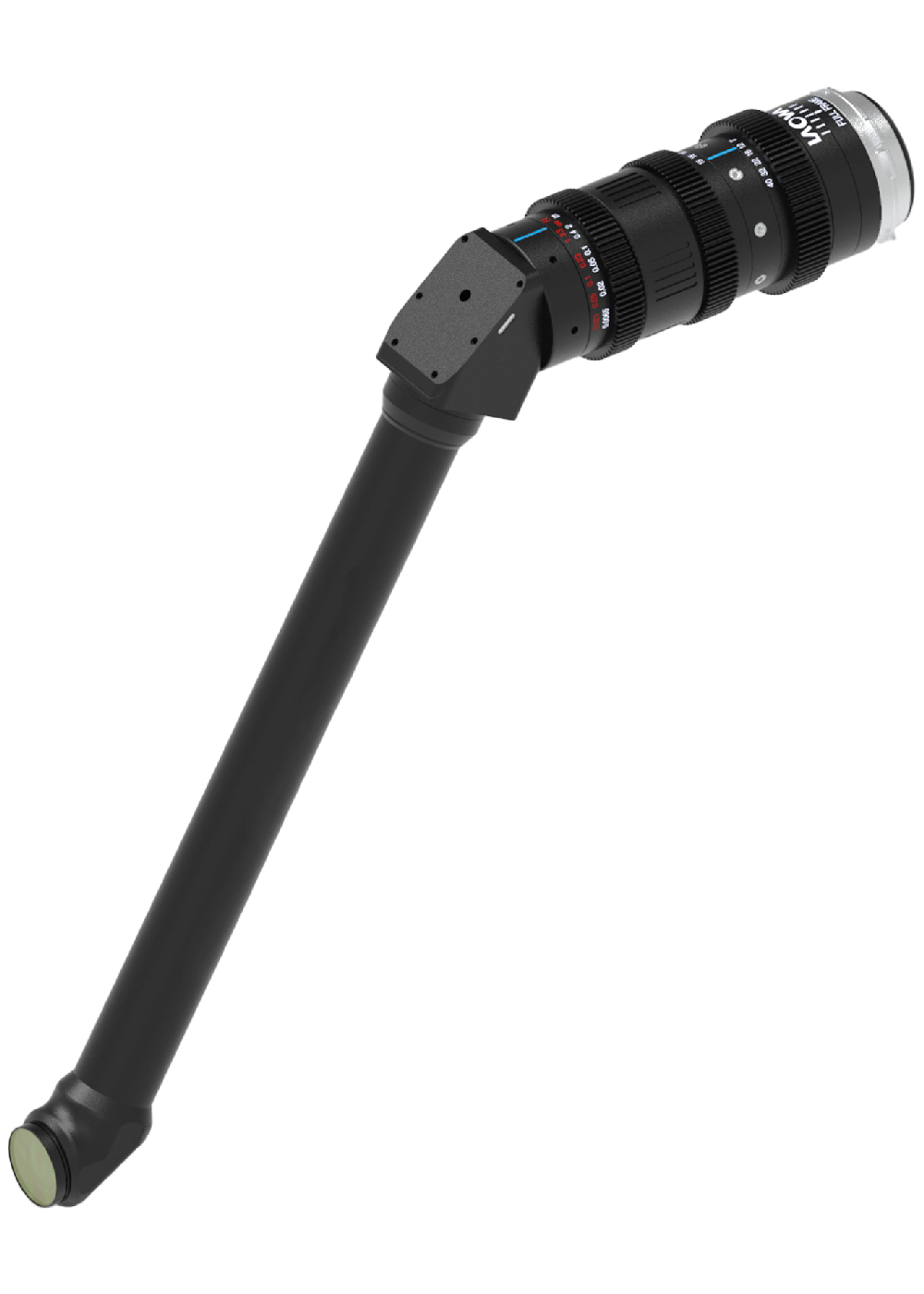

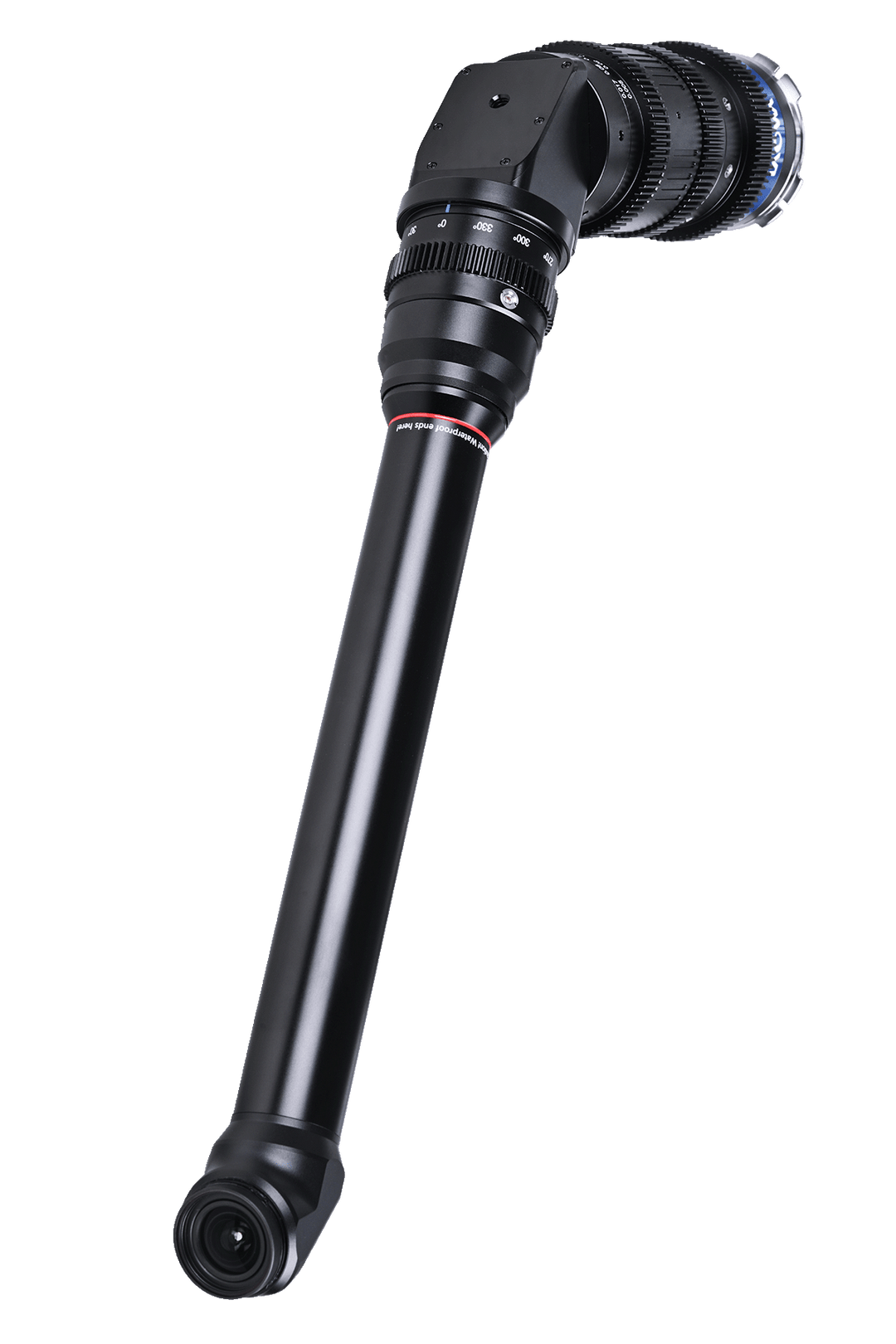

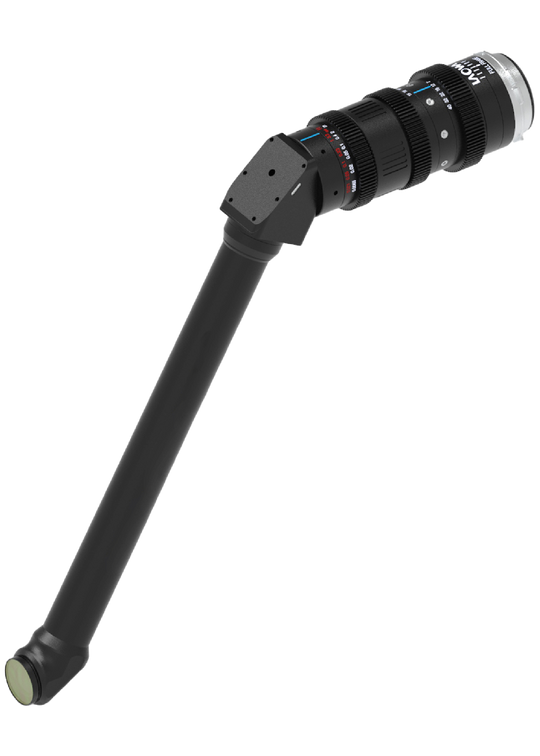

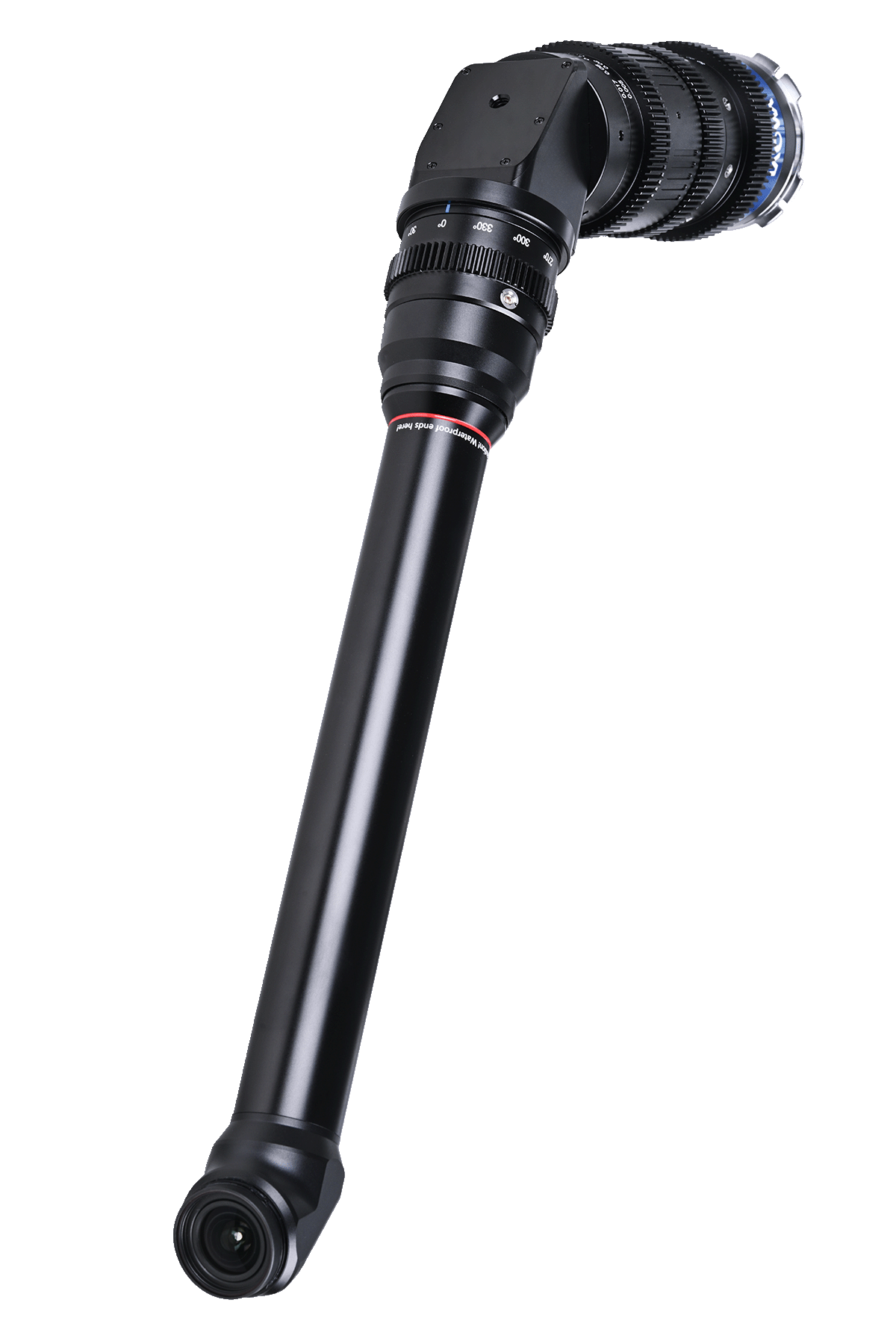

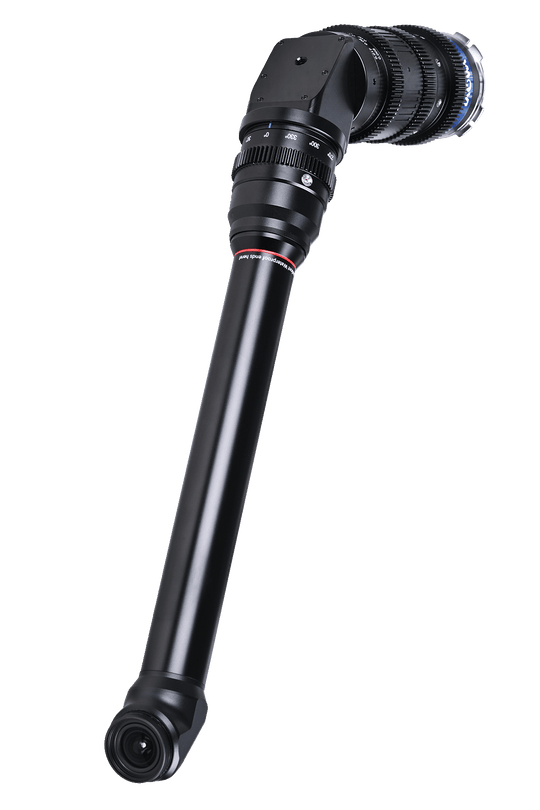

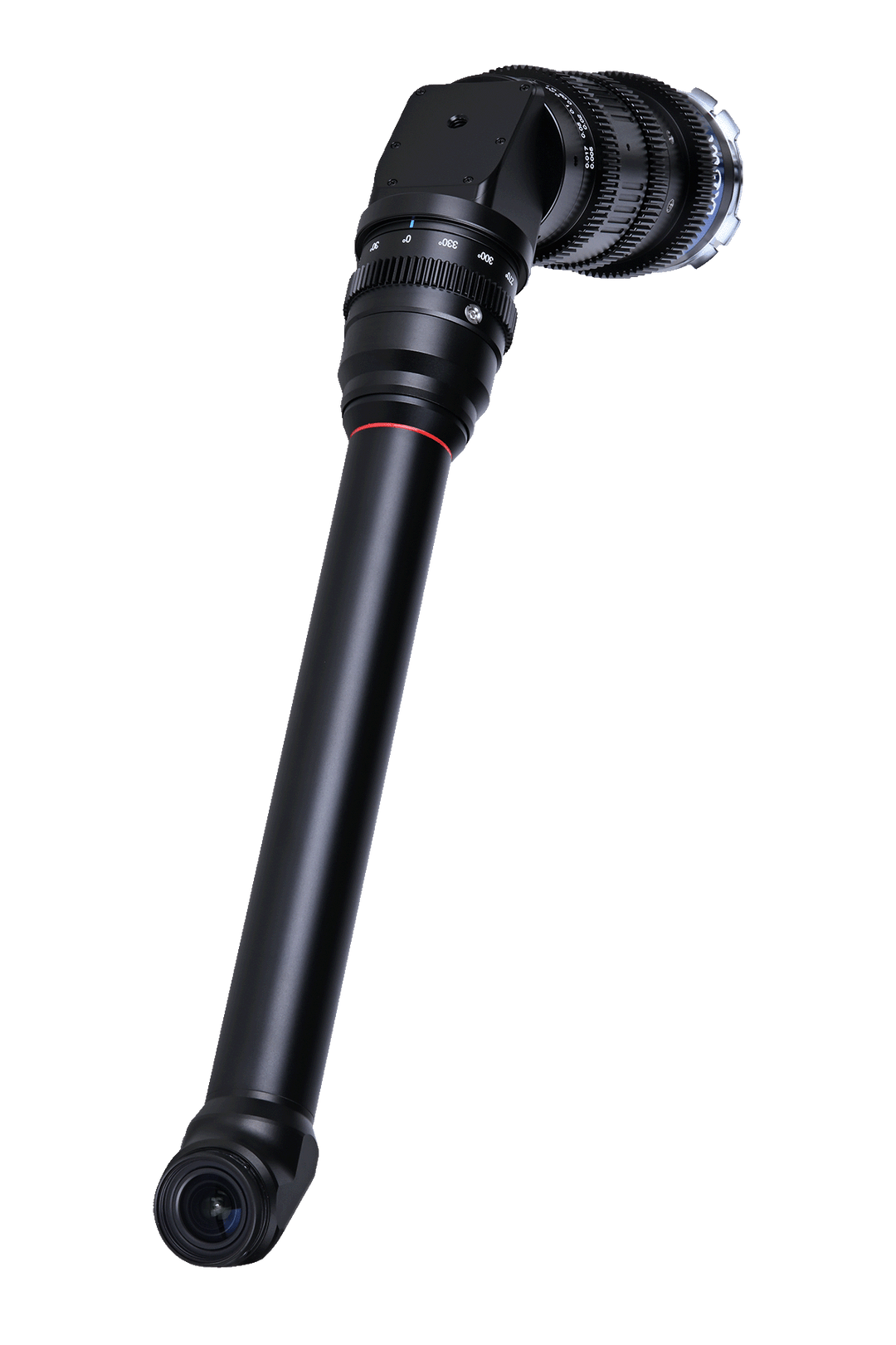

Periscope View

Extended periscopic view parallel to the camera, rendering subjects at different elevations.

Up to 2.3X Parfocal Zoom Range for Exaggerated & Creative Zoom Effects

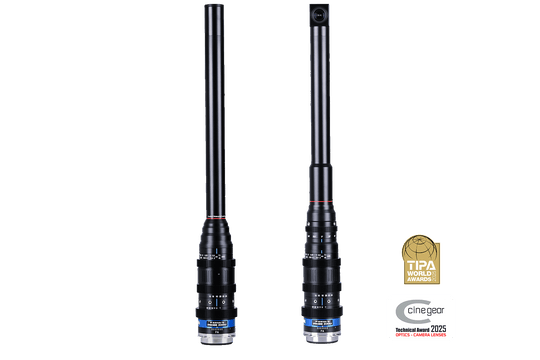

15-24mm T8 Zoom Demonstration

1.6X Zoom Range with brighter T8 aperture for easier lighting setups

Maximum Magnification: 1X at 15mm up to 1.6X at 24mm

15-35mm T12 Zoom Demonstration

2.3X Zoom Range for extended focal range and versatility

Maximum Magnification: 1X at 15mm up to 2.3X at 35mm

Both zoom modules feature parfocal design, an ultra-wide 15mm perspective and close 5mm working distance.

SPECIFICATIONS

Lens Name	Laowa Probe Zoom 15-24mm T8	Laowa Probe Zoom 15-35mm T12
Format	Full Frame
Focal Length	15-24mm	15-35mm
Aperture Range	T8-T32	T12-T40
Angle of View	110.5°-84.1°	110.5°-63.4°
Lens Structure	37 elements in 26 groups
Aperture Blades	9 blades
Focus Throw	90°
Aperture Throw	31°	27.5°
Zoom Throw	58°	100°
Zoom Ratio	1.6x	2.3x
Image Circle Diameter	Ø43.2mm
Flange Distance	±15°
Gear Mod	0.8
Min. Focusing Distance	600.5mm / 1'12"
Min. Working Distance	5mm / 0.20"
Max. Magnification	1X -1.6X	1X -2.3X
Focus System	MF
Front Diameter	Ø32mm
Dimensions	Periscope: Ø68.8 x 540 mm / Ø2.71" x 21.3" 90°: Ø68.8 x 545.6 mm / Ø2.71" x 21.5" 35°: Ø68.8 x 539.2 mm / Ø2.71" x 21.2" 0°: Ø68.8 x 545.1 mm / Ø2.71" x 21.5"
Weight	1400g / ~3.09lbs
Mount	ARRI PL (Optional Interchangeable Bayonet: Canon EF / Sony E / Nikon Z / Canon RF / L Mount)
