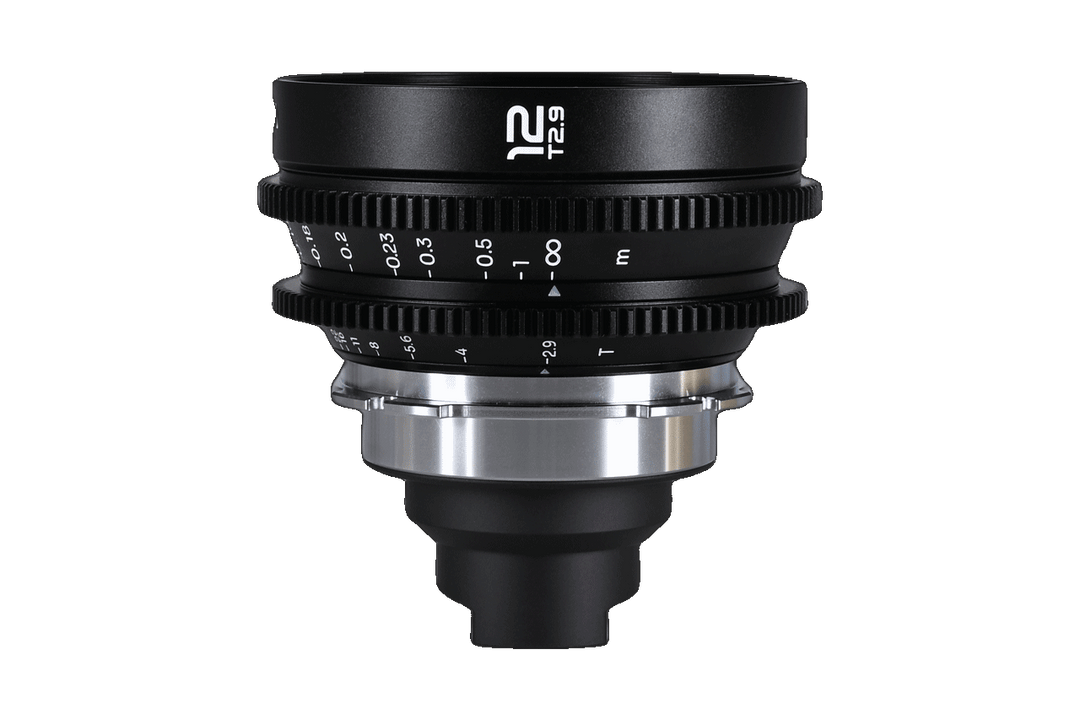

Laowa 12mm T2.9 Lite Zero-D VV Cine Lens

The lightest 12mm rectilinear lens for Vista Vision sensors, the Laowa 12mm T2.9 Lite Zero-D VV Cine combines a 122° field of view with minimal distortion. Its Ø46.31mm image circle provides full coverage for both full-frame and Vista Vision formats while weighing just 458g. This compact optic enables dynamic, immersive cinematography with exceptional edge-to-edge clarity.

Key Specifications

• Lens Mount(s): Arri PL, Sony E or Canon RF

• Sensor Coverage: Vista Vision & Full Frame

• Image Circle Ø: 46.31mm / 1.82"

• Focal Length (FoV): 12mm (122°)

• Maximum Aperture: T2.9

• Minimum Focus Distance: 14cm / 5.51"

• Front Diameter: Ø80mm

• Filter Thread: Ø77mm

• Focus/Aperture Throw: 100° / 67.5°

• Geared Focus & Aperture: 0.8mm pitch

• Dimensions (PL): Ø84 x 47.5mm

• Weight (PL): 458g / 1.01lbs

• Dual Imperial & Metric Focus Scale Markings

This 12mm T2.9 features Laowa's signature Zero-D technology, maintaining straight lines from center to edge despite its wide 122° perspective. This quality makes it particularly valuable for architectural cinematography and visual effects work where spatial accuracy is crucial.

Weighing only 458g in PL mount configuration, this lens readily integrates with gimbals, drones and handheld rigs. The consistent T2.9 aperture delivers strong low-light performance, while industry-standard 0.8mm pitch gears provide seamless compatibility with professional focus systems.

The lens focuses to 14cm, allowing filmmakers to create compositions that emphasize foreground details against expansive backgrounds. This close-focusing ability enables dramatic depth effects that enhance visual storytelling.

Notable features include

• Zero-D design preserving straight lines across the 122º FOV

• Complete Vista Vision coverage with Ø46.31mm image circle

• Integrated 77mm filter thread for direct accessory attachment

• Outstanding image quality combined with T2.9 maximum aperture
• 14cm minimum focusing distance

• Robust cine housing with dual-scale distance markings

• Exceptionally lightweight design for versatile mounting options

The 12mm T2.9 Lite excels in environments requiring both wide perspective and minimal distortion—from confined interiors and architectural spaces to landscape vistas and immersive narratives. Its practical features and portable design suit productions ranging from independent projects to major studio works.
