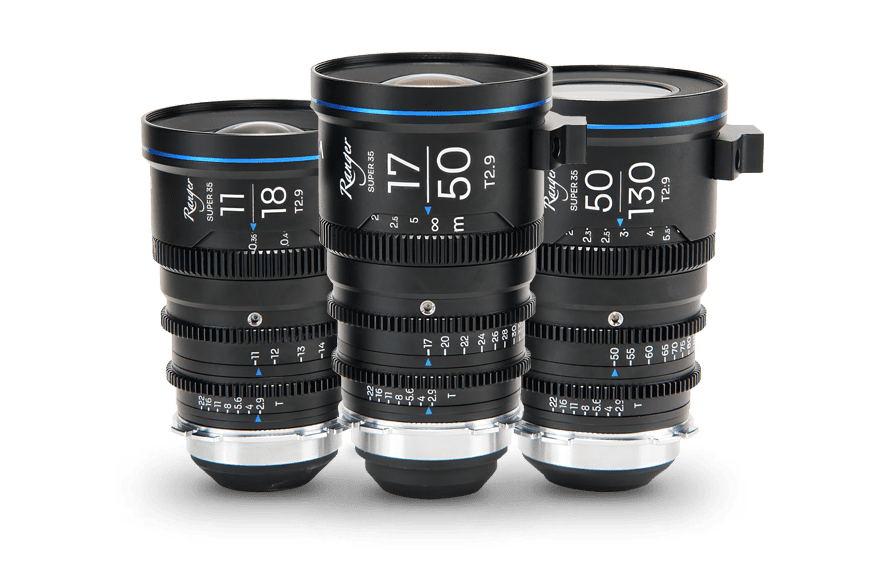

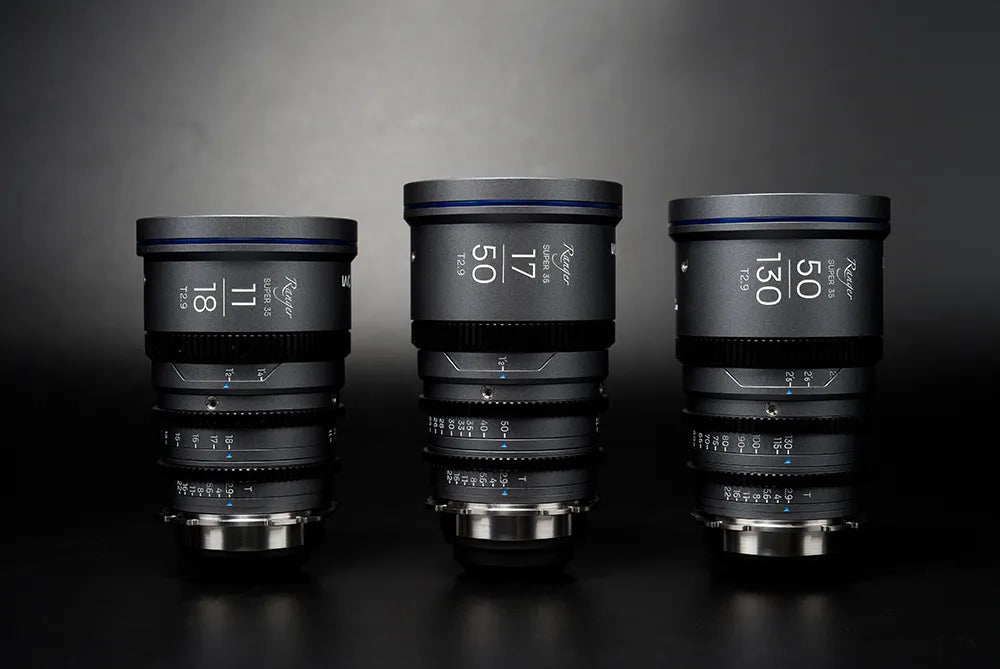

Laowa Ranger S35 T2.9 Compact Cine Zoom Lens Series

The Laowa Ranger S35 T2.9 Compact Cine Zoom Lens Series combines exceptional optical performance with unprecedented portability in professional cinema zooms. This comprehensive three-lens set, designed specifically for Super35 sensors, covers an extensive range from 11mm to 130mm while maintaining a constant T2.9 aperture. The series offers cinematographers exceptional versatility without compromising professional features, image quality, or mobility.

Key Specifications

• Lens Mount(s): Arri PL

• Sensor Coverage: Super35 / APS-C

• Image circle Ø: 31.5mm / 1.24"

• Available Focal Lengths: 11-18mm, 17-50mm, 50-130mm

• Maximum Aperture: T2.9 (constant for all three lens options)

• Standard and Lite versions available

• Unified Housing Diameter: 80mm

• Unified Filter Thread: 77mm

• Geared Focus & Aperture: 0.8mm pitch

• Weight (Standard / Lite):

  • 11-18mm: 745g / 660g

  • 17-50mm: 865g / 775g

  • 50-130mm: 760g / 665g

• Dual Imperial & Metric Focus Scale Markings

** Interchangeable mount bayonets available via special import request: EF, RF, E, Z, L & X **

The Ranger S35 series sets new benchmarks for compact cine zooms through its thoughtful design approach. Each lens delivers professional-grade features including true parfocal performance, minimal focus breathing, and consistent T2.9 brightness throughout the zoom range. The series covers an impressive 11X zoom range when used as a complete set, offering cinematographers exceptional versatility in a remarkably compact package.

These lenses maintain outstanding optical performance while achieving unprecedented size reduction. Available in both standard aluminium and lightweight magnesium alloy (Lite) versions, they offer flexibility for different production needs. The unified gear positions across all three lenses enable quick lens changes without repositioning follow focus or motor systems. With a consistent 80mm outer diameter and 77mm filter thread it simplifies matte box and filter setups, while the extremely close focusing distances expand creative possibilities across all focal lengths.

Notable features include

• Ultra-compact and lightweight design

• Industry leading focal range for Super35

• Optional Lite version for additional weight reduction

• True parfocal performance

• Minimal focus breathing

• Constant T2.9 aperture throughout the zoom range

• Unified gear positions in a professional housing

• Consistent housing diameter and filter thread

• Extremely close minimum focus distances

The Ranger S35 series redefines expectations for professional cine zooms. Its combination of exceptional optical performance, professional features, and unprecedented portability makes it particularly valuable for dynamic production environments. From intimate documentary work to commercial productions, independent films to mobile cinematography, these lenses enable filmmakers to maintain professional production values while maximizing mobility and shooting efficiency.

PROFESSIONAL CINE HOUSING

UNIFIED GEAR POSITION – All Ranger S35 lenses can be switched quickly between focal lengths to work with the same set of gears.

0.8 MOD GEAR – For both aperture and focus ring

80MM OUTER DIAMETER AND 77MM FILTER THREAD – Designed to accommodate the common matte boxes or filters

DUAL SCALE DESIGN – Both imperial and metric scales are available on the lens
