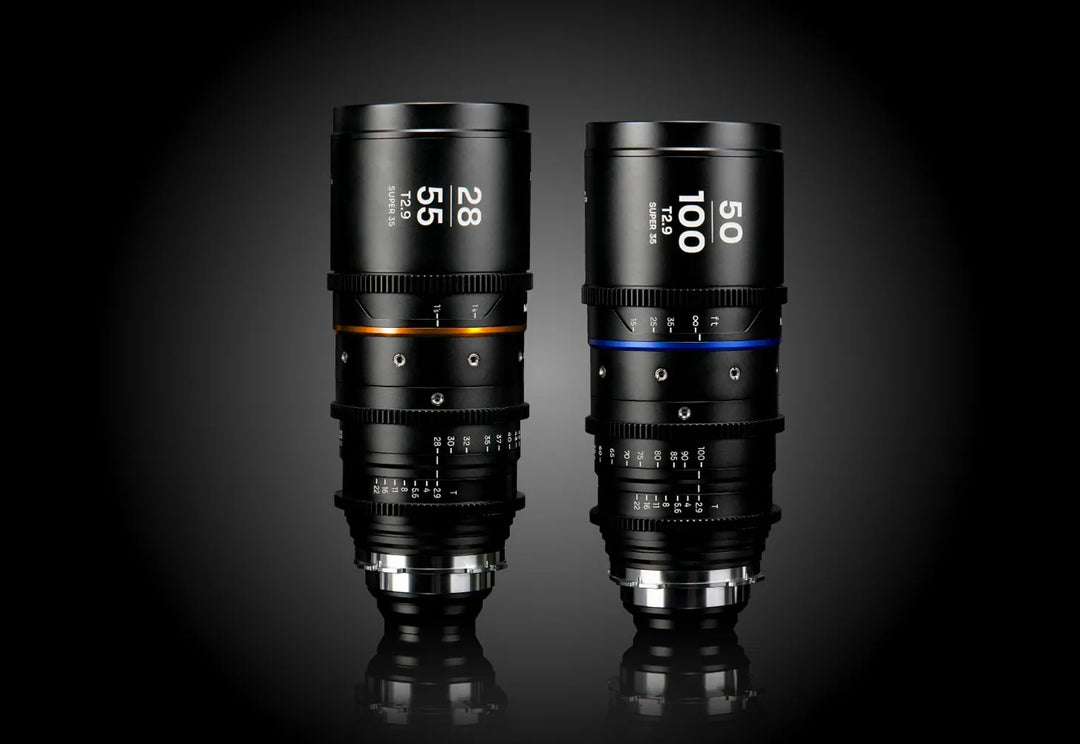

Laowa Nanomorph Zoom S35 1.5X Anamorphic Cine Lens Series

The Laowa Nanomorph Zoom S35 1.5X Anamorphic Cine Lens Series brings revolutionary compact zooms to anamorphic cinematography. Consisting of two lightweight lenses covering 28-100mm at a constant T2.9 aperture, this front anamorphic system delivers classic widescreen aesthetics with customizable flare options in Blue, Amber, or Silver, making professional anamorphic zoom capabilities accessible to independent filmmakers and productions of all scales.

Key Specifications

• Lens Mount(s): Arri PL

• Sensor Coverage: Super35+ / APS-C

• Image Circle Ø: 31.5mm / 1.24"

• Available Focal Lengths: 28-55mm & 50-100mm

• Maximum Aperture: T2.9 (constant for both lenses)

• Minimum Focus Distance:

  • 28-55mm: 45cm / 17.72"

  • 50-100mm: 80cm / 31.5"

• Unified Housing Diameter: 80mm

• Unified Filter Thread: 77mm

• Weight: ~1.51kg / 3.34lbs per lens

• Unique Flare Colour Options: Blue, Amber or Silver

• Front Anamorphic 1.5X Squeeze Ratio

• Geared Focus & Aperture Rings: 0.8mm pitch

• Focus Throw: 270º

• Dual Imperial & Metric Focus Scale Markings

** Optional 1.33X Front Anamorphic Adapter to convert to a 2X squeeze ratio - available via special import request **
** Interchangeable mount bayonets available via special import request: RF, E, Z, L or X **

These groundbreaking zooms achieve authentic anamorphic characteristics in an unprecedented compact form. Each lens maintains a constant 1.5X squeeze ratio throughout its range while delivering organic oval bokeh and signature flares. The combined 3.6X zoom range from 28mm to 100mm enables seamless transitions between perspectives, while parfocal design ensures focus stability during zoom movements. Despite their compact size, these lenses maintain exceptional clarity with minimal chromatic aberration.

Engineered for efficient production workflows, the series incorporates comprehensive professional features in a surprisingly lightweight package. Built-in rear focus adjustment streamlines setup procedures, while unified gear positions and matching 77mm filter threads ensure consistent accessory compatibility. The robust housing provides a long 270-degree focus throw for precise control, and impressively short minimum focus distances enable intimate framing options rarely achievable with anamorphic zooms.

Notable features include

• Uniquely compact front anamorphic zoom system

• Constant T2.9 aperture throughout zoom range

• Complete parfocal coverage from 28mm to 100mm

• Constant 1.5X squeeze ratio

• Smooth oval bokeh rendering

• Three signature flare options

• Exceptional close focus capability

• Standardized dimensions & gear positioning

• Long focus throw for precise control

• Durable housing with built-in back focus adjustment

These innovative anamorphic zooms represent a significant advancement in accessible cinematography. Their combination of authentic anamorphic characteristics and practical zoom ranges in a compact form factor opens new creative possibilities for modern production scenarios. Whether shooting handheld or with support systems, these lenses deliver cinematic widescreen imagery while maintaining the mobility and efficiency demanded by today's diverse production environments.

Revolutionary Compact Anamorphic Zoom

The Nanomorph Zooms are the first affordable S35 front anamorphic zoom lenses, weighing just 3.34lbs (1.5kg) and measuring 7" (18cm). Significantly smaller than competing options, these versatile lenses offer exceptional portability while covering a wide range of shooting needs.

Extensive Zoom Range

With a combined 3.6x zoom range, the 28-55mm and 50-100mm lenses are ideal for car mounts, gimbals, and steadicams. These versatile zooms eliminate frequent lens changes between shots, saving valuable production time while delivering diverse perspectives.

Parfocal Design

The Nanomorph Zoom lenses maintain precise focus throughout their entire zoom range. Cinematographers can confidently adjust focal length during shots without focus shifts, ensuring consistent sharpness from left and loose to right and tight.

Flattering Oval Bokeh

With precise depth of field control, these lenses create beautiful subject isolation and soft, natural-looking background blur. The 1.5x squeeze ratio produces distinctive stretched bokeh effects, adding a signature anamorphic character to your cinematography.

©Ed Prosser/©Kristoffer Davidsson

Constant 1.5X Squeeze Ratio

The Nanomorph Zooms maintain a consistent 1.5X squeeze ratio, perfectly complementing the widely used 16:9 sensors. Compared to available 1.33X anamorphic lenses, they deliver a more pronounced cinematic aesthetic without the increased size and image wastage that would result from 1.8X or 2X squeeze ratios.

©Kristoffer Davidsson

Why Choose Anamorphic Over Spherical?

The Nanomorph Zooms maintain a consistent 1.5X squeeze ratio, perfectly complementing the widely used 16:9 sensors. Compared to available 1.33X anamorphic lenses, they deliver a more pronounced cinematic aesthetic without the increased size and image wastage that would result from 1.8X or 2X squeeze ratios.

Professional Cine Housing

Nanomorph Zoom series is meticulously crafted to cater to the needs of cinematographers and camera operators.
